LED chips are semiconductor light sources known for their high brightness, efficiency, and long lifespan. Over time, they have increasingly replaced traditional incandescent and fluorescent lamps to become the dominant lighting solution. This article will provide a detailed overview of the structure, design, materials, and key characteristics of LED chips.

1. Structure of LED chips

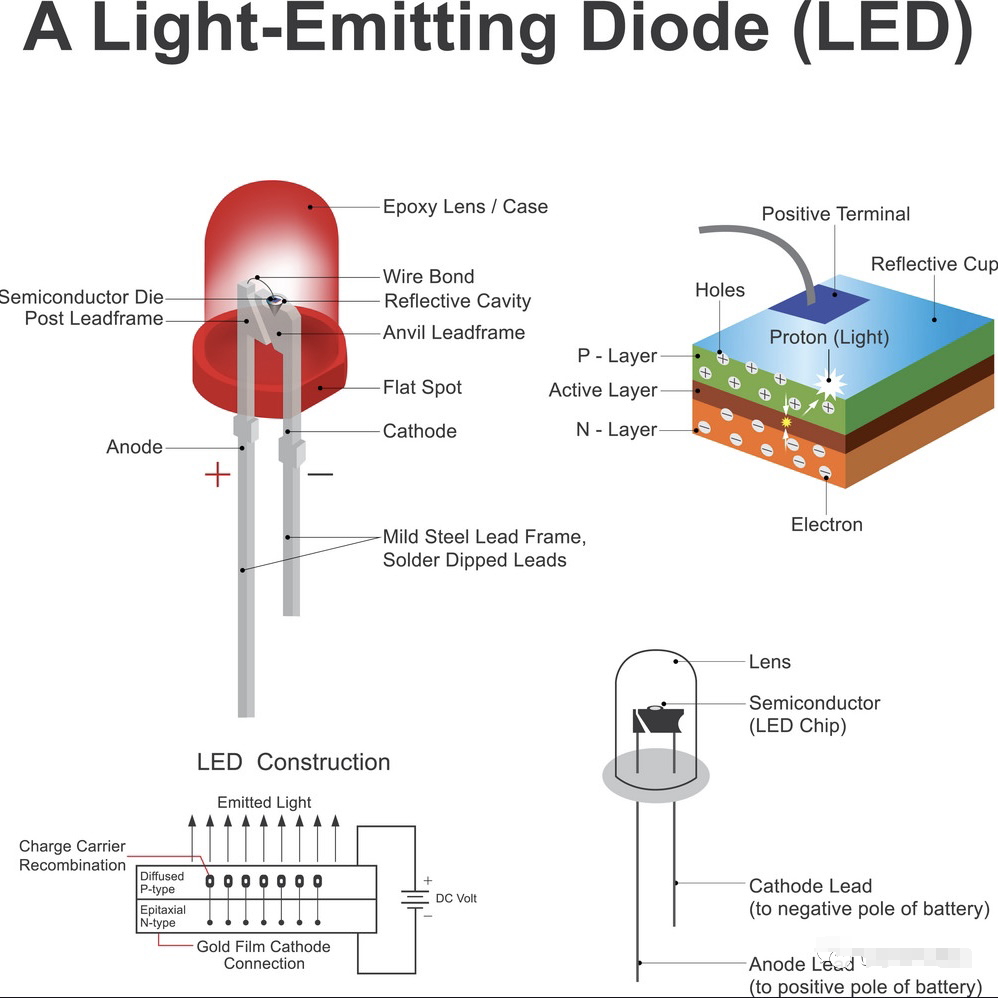

The structure of an LED lamp bead consists of four main components: the chip, package, conductive electrode, and bracket.

1.LED chips

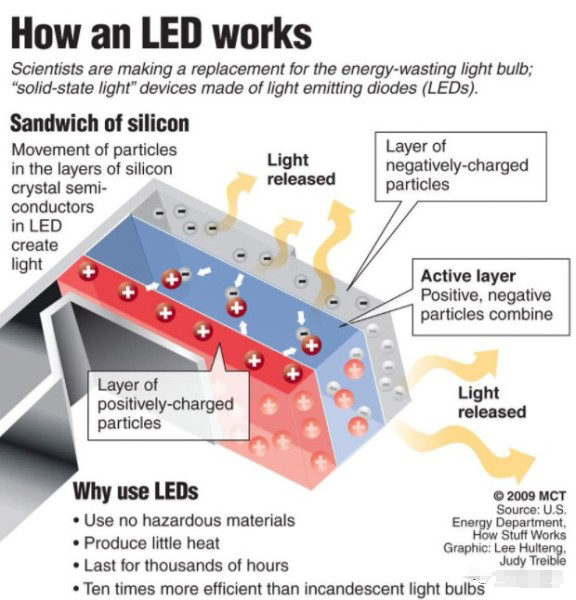

The chip is the core of the LED lamp bead and is responsible for light emission. It is made from semiconductor materials, and light is generated through the recombination of electrons and holes at the PN junction. Typically, the size of the chip is around 1mm.

1.2 Package

The package encapsulates the chip in a transparent resin to protect it from damage and enhance light output. Packaging materials are generally epoxy resin or silicone resin. The primary functions of the package are to shield the chip and focus the emitted light.

1.3 Conductive Electrode

The conductive electrode connects the chip to the circuit board, enabling the flow of electricity. These electrodes are typically made from metal wires or silver paste, ensuring stable electrical contact between the chip and the external circuitry.

1.4 Bracket

The bracket serves as the mechanical support for the LED lamp bead. It holds the chip and package in place and is typically made of metal or plastic. This component also helps with heat dissipation and structural integrity.

2. Design of LED chips

The design of LED chips involves considerations for the chip, package, and conductive electrodes.

2.1 Chip Design

Chip design includes the selection of appropriate semiconductor materials and the optimization of crystal growth techniques. Different materials have varying luminous wavelengths and efficiencies, so selecting the right material for the intended application is crucial. Additionally, crystal growth technology is used to optimize the chip’s structure, enhancing both photoelectric conversion efficiency and light output.

2.2 Package Design

The package design focuses on selecting materials with high transparency and good thermal conductivity to maximize light output and extend the life of the chip. It also needs to be designed with heat dissipation in mind, ensuring the LED operates efficiently. The structure of the package is carefully crafted to focus the emitted light effectively.

2.3 Conductive Electrode Design

The conductive electrode design involves determining the proper thickness for metal wires or silver paste to ensure stable current flow and reliable electrical performance. Properly designed conductive electrodes are crucial for maintaining the LED's efficiency and longevity.

3. Materials Used in LED chips

The materials used in LED chips can be grouped into three categories: semiconductor materials, packaging materials, and conductive materials.

3.1 Semiconductor Materials

Common semiconductor materials used in LED chip manufacturing include GaAs (Gallium Arsenide), GaP (Gallium Phosphide), GaInN (Gallium Indium Nitride), and AlGaInP (Aluminum Gallium Indium Phosphide). These materials are selected based on their luminous wavelengths and efficiency characteristics, making them suitable for various color outputs and applications.

3.2 Packaging Materials

The materials used for packaging LED chips include epoxy resin and silicone resin. Epoxy resin offers high transparency and excellent mechanical strength, though it has poor thermal conductivity. Silicone resin, on the other hand, provides better thermal dissipation but has lower transparency.

3.3 Conductive Materials

The primary conductive materials for LED chips are metal wires and silver paste. Metal wires, often made from gold or copper, are highly durable and resistant to heat, but they come with a higher cost. Silver paste is a more affordable alternative but can be prone to oxidation under high-temperature conditions, potentially affecting the LED's reliability.

4. Characteristics of LED chips

LED chips offer a range of superior characteristics compared to traditional light sources:

4.1 High Brightness

LED chips are known for their high luminous efficiency, which allows them to produce significantly more light per watt of energy consumed, resulting in a brighter output compared to traditional lighting technologies.

4.2 High Efficiency

LEDs have excellent energy conversion efficiency, meaning they convert a higher proportion of electrical energy into light. This reduces energy consumption and operational costs while contributing to a more sustainable lighting solution.

4.3 Long Lifespan

LED chips boast a long lifespan, typically lasting tens of thousands of hours, far surpassing traditional light bulbs. This extended operational life reduces maintenance costs and the frequency of bulb replacements.

4.4 Energy Saving and Environmental Benefits

LEDs are environmentally friendly, using solid-state technology with no harmful substances such as mercury. They also consume less power, which reduces the overall carbon footprint of lighting systems and decreases the environmental impact of lighting.

4.5 High Controllability

LED chips offer superior flexibility in terms of control. They can be adjusted to achieve various lighting effects, including color changes, brightness adjustments, and flashing effects, all by varying the current or using controllers.

4.6 Compact Size

LED chips are small and lightweight, making them versatile and easy to integrate into a variety of applications. Their compact size allows for the development of more innovative lighting designs.

4.7 Excellent Durability

LED chips are solid-state devices, which makes them more durable and resistant to shocks, vibrations, and physical damage compared to traditional incandescent or fluorescent bulbs. This high resistance to mechanical stress makes LEDs ideal for environments that experience frequent movement or harsh conditions.

Conclusion

In conclusion, LED chips are a highly efficient and durable light source with significant advantages over traditional lighting options. Their structure, design, and material choices ensure superior performance, energy savings, and environmental benefits. As technology continues to advance, the applications and capabilities of LED chips will expand, offering even more innovative solutions across industries.
